A threaded ball valve is a type of quarter-turn valve that utilizes a hollow, perforated, and pivoting ball to control flow through it. It's designed with female threaded ends, enabling easy installation into piping systems without the need for welding. By rotating the ball 90 degrees, it either allows flow or shuts it off completely. These valves are commonly used in industrial applications, offering reliable and efficient flow control in various fluid-handling systems.

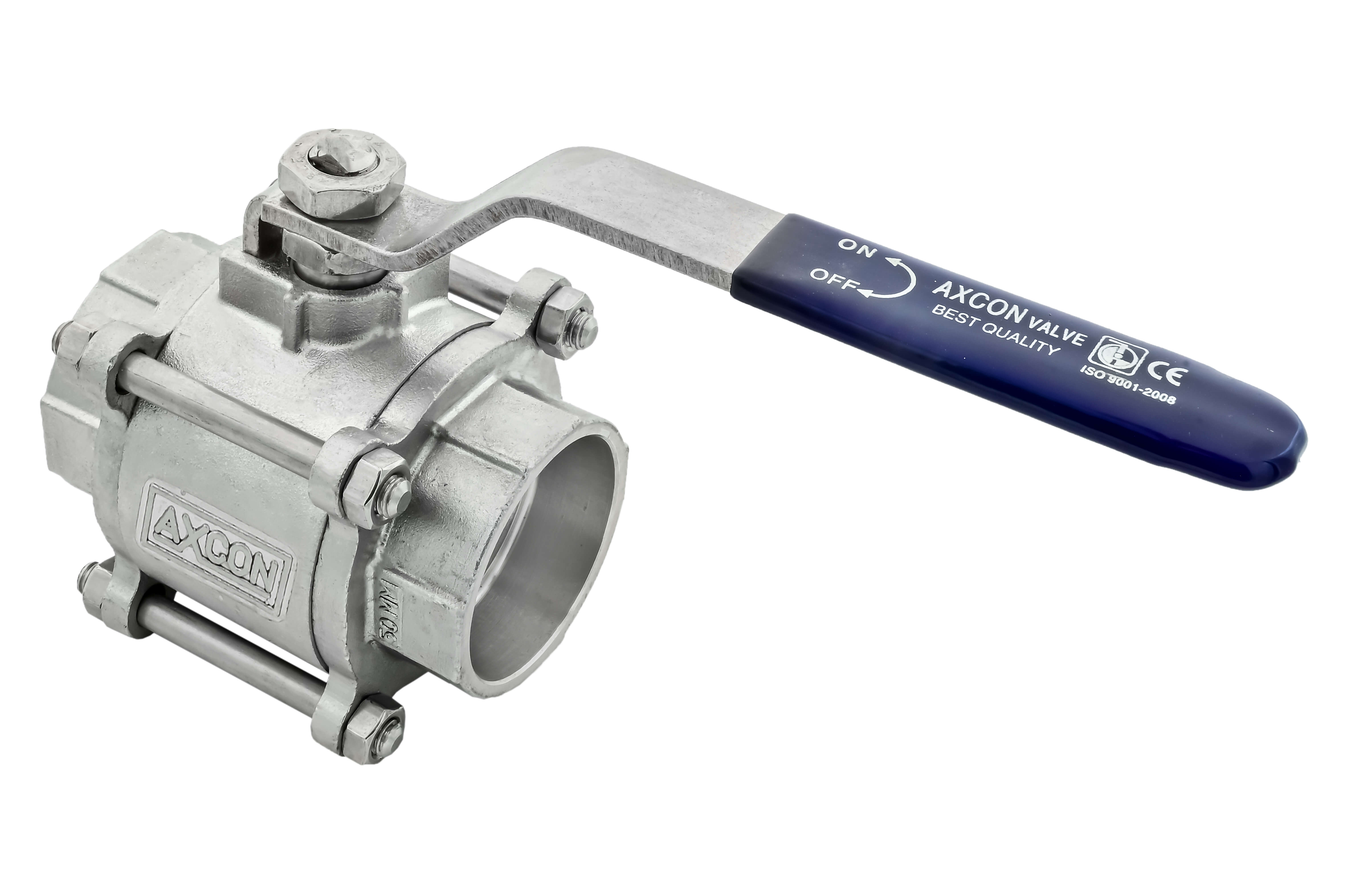

Three Pieces Screwed End
MOC:
WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys,Etc.
Valve Design:
Three Piece Construction
Size:
15mm to 50mm (1/2" TO 2")
End Connection:
Screwed End To BSP(F) or NPT(F) (ASME B16.11)
Pressure Class:
150#
Operation:
Manual
Design & manufacturing Standard:
ISO 17292 / BS 5351
Testing & Inspection:
API 598 / BS 6755
Fire Safe:
Yes
Valve Bore:
Full Bore
Temp. Range:
-20 TO 180°C
